5 cbm water tank and 5 cbm dust tank 120hp Eu 5 Engine Street Clean
HIgh Pressure Road Sweeper
High pressure washing and sweeping truck.
1. Working principle of washing and sweeping truck
The cleaning and sweeping vehicle combines the functions of a road
sweeper and a high-pressure cleaning vehicle. Generally, it comes
standard with two center mounted brushes (equipped with a V-shaped
high-pressure water spray rod in front of the brushes) and a center
mounted suction nozzle (with a built-in high-pressure water spray
rod). The washing and sweeping vehicle sprays high-pressure water
from the high-pressure water spray rod during operation, which can
flush stubborn attachments on the road surface. The water and
garbage are sucked into the garbage bin together with the suction
nozzle. Due to the high water consumption of the washing and
sweeping vehicles during the operation, the water tank is
relatively large. Therefore, the washing and sweeping vehicles are
all modified from chassis with a wheelbase of 3800 mm or more. The
washing and sweeping vehicle is equipped with a 17 meter
high-pressure water flushing reel and a high-pressure water gun,
making it more convenient and efficient to clean roads, sidewalks,
and small advertisements.
2. Applicable environment for washing and sweeping truck
The cleaning truck has good cleaning effect and convenient
maintenance, and is suitable for mechanized cleaning, sweeping,
spray dust reduction and other cleaning operations of urban roads,
highways, squares, airports, docks, tunnels, bridges, separation
walls, curbs and curb facades.
Main Technical specifications
| Overview |
| Chassis model | EQ1110SJ8BDC |
| Wheelbase | 3800mm |
| Front/rear suspension | 1130/2070 mm |
| Chassis engine | YC4FA120-30 |
| Chassis engine | 88kw, 2982cc, 120hp |
| Spare engine | 64 kW |
| Max upgrade angle | 30% |
| Emission standard | Eu 3 |
| Accelerating outside noise | ≤84dB(A) |
| Max speed | 100 km/h |
| Approach angle | 20° |
| Departure angle | 11° |
| Kurb weight | 7045 kg |
| Whole weight | 11450kg |
| Whole dimension | 7000×2200×2700mm |
| Minimum height above ground | 250 mm |
| High pressure clean |
| Clean speed | 3~20 Km/h |
| Clean width | 3 m |
| Water pressure | 12 MPa |
| Water pump flow | 115 L/min |
| Clean and suction performance |
| Cleaning efficiency | ≥95% |
| Maximum suction particle size | 110 mm |
| Clean and suction width | 3 m |
| Max clean capacity | 60000 m2/h |
| Disc brush size | ≥400 mm |
| Clean and suction speed | 3-20 km/h |
| Tank capacity |
| Water tank volume | 5 m³ |
| Dust tank volume | 5 m³ |
| Dump bin tilting angle | ≥46° |
| Discharge door opening angle | ≥85° |
| Hydraulic Hydraulic system | |
| Model | Open, electrical control |
| Major parts | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
| System pressure | 16 MPa |
| Oil tank | 60 L |
| Oil temperature | 60 ˚C |
| Electrical system |
| Model | DC24 V |
| Voltage | 24 V |
| Battery | 24 V |
| Sweeping devise |
| Model | Center two swabs, driven by a hydraulic motor, and the front right
can be controlled independently, with a evasive reply function. |
| Brush diameter | 850 mm |
| Brush angle | Tilt forward: 4-6 degrees Tilt: 4-7 degrees |
| Sucking plate |
| Model | Double suction, hydraulic control, spring suspension. |
| Suction plate diameter | 180 mm |
| Suction plate width | 1800mm |
| High pressure water system |
| Model | post pump |
| No:. | Germany PT36 |
| System pressure | 10 MPa |
| Speed | 1150 r/min |
| Water valve model | Hydraulic pressure ball valve. |
| Water valve pressure | 7 MPa |
| Spray nozzles model | High pressure washing type |
| Water filter | Mesh type |
| Water spray system | Electric diaphragm pumps, water filters, nozzles, etc. |
Truck tools
| No:. | ITEM | QTY | REMARK |
| 1 | Fire hose | 2 | |
| 2 | Fire wrench | 1 | |
| 3 | Water filter wrench | 1 | |
| 4 | High pressure water jet gun | 1 | |
| 5 | Spare tire | 1 | 7.00R16 |
| 6 | Manual hydraulic pump rocker | 1 | |
Truck spare parts
| No:. | ITEM | QTY | |
| 1 | Brushing | 1 | |
| 2 | Suction cup front rubber | 1 | |
| 3 | After the suction cup | 1 | |
| 4 | Fan belt | 5 | |
| 5 | Water pump belt | 3 | |
| 6 | Casters | 4 | |
| 7 | O-rings and combination washers | | |
| 8 | Middle baffle rubber | 1 | |
| 9 | Seal | 1 | |
Major import configurations
| No. | Item | Type | Manufacturer |
| 1 | High pressure water pump | PT36 | Germany PINFL |
| 2 | Automatic unloading after valve | VB200/150 | Germany PINFL |
| 3 | Flood valve | VS200-180 | Germany PINFL |
| 4 | Nozzle | B1/4MEG | America spray company |
| 5 | Liquid level switch | LME200B5/24V | Italy SOFIMA |
| 6 | CPU | 6ES7 214-1AD23-OXB0 | Germany SIEMENS |
| 7 | Digital quantity extension module | 6ES7 223-1PH22-OXA0 | Germany SIEMENS |
| 8 | The central distribution box | DVEC | America COOPER |
| 9 | Stepping motor | 57H41-2.7-001 | America Haydn |
| 10 | Switch gear cabinet | NE-AG | Korea HIBOX |
| 11 | Switch Control | | Japan IDEC |
| 12 | Proximity switch | NBB10-30GM50-E0 | PEPPRL FUCHS |
| 13 | Suction pipe | | NORRES |
| 14 | Hydraulic motor | BMR125 | Brevini |
| 15 | Hydraulic valve | SWH-G02-C4-D2H | Radix stemonae machines |

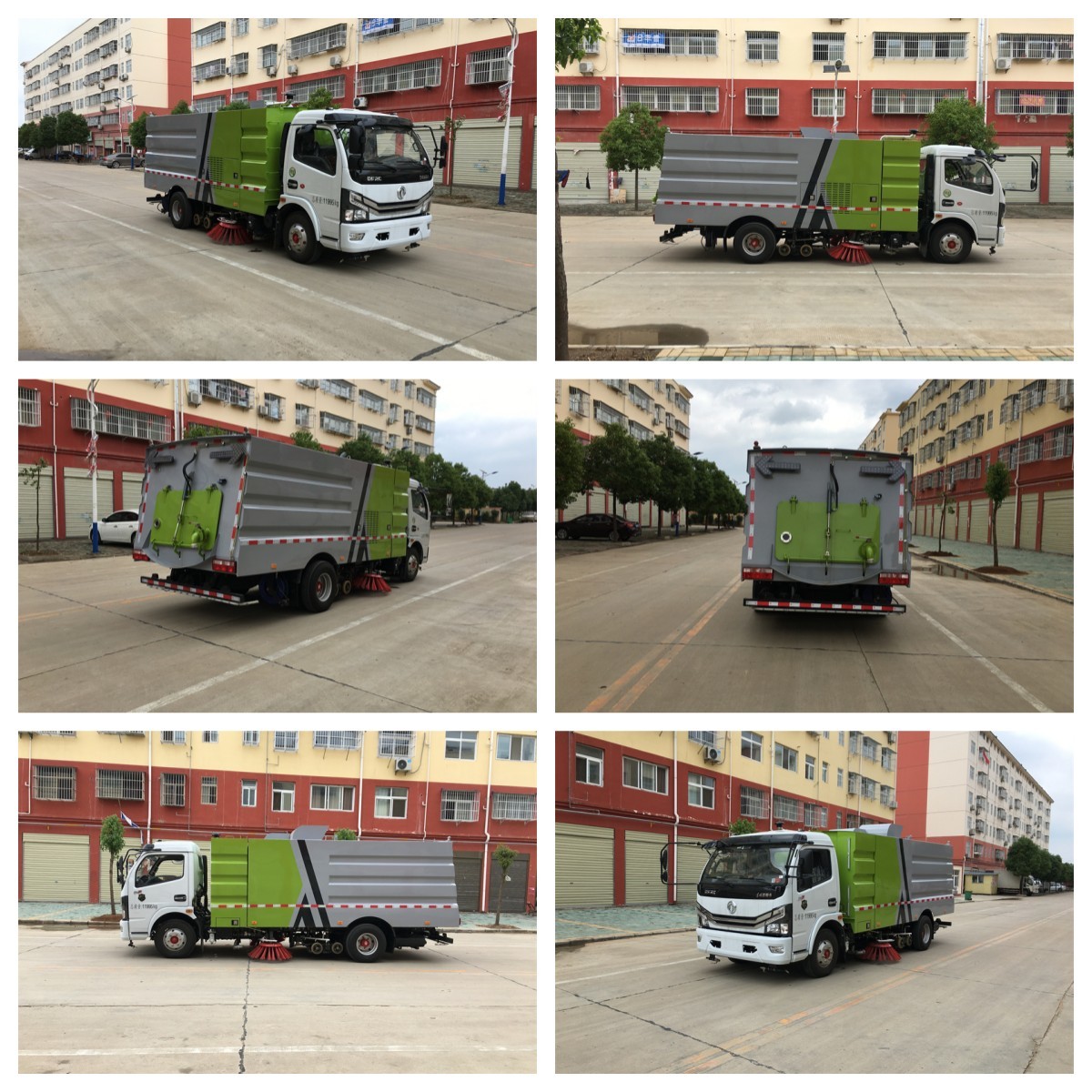

High pressure road sweeper truck picture
