35600lb 16 Ton Medium Duty Wrecker Integrated Tow Truck With Front Outrigger

Ask Lasest Price
Brand Name :	iTruck
Price :	$22,000.00/units
Supply Ability :	5 sets per month
Delivery Time :	60 days

Add to Cart

Product Details
Company Profile

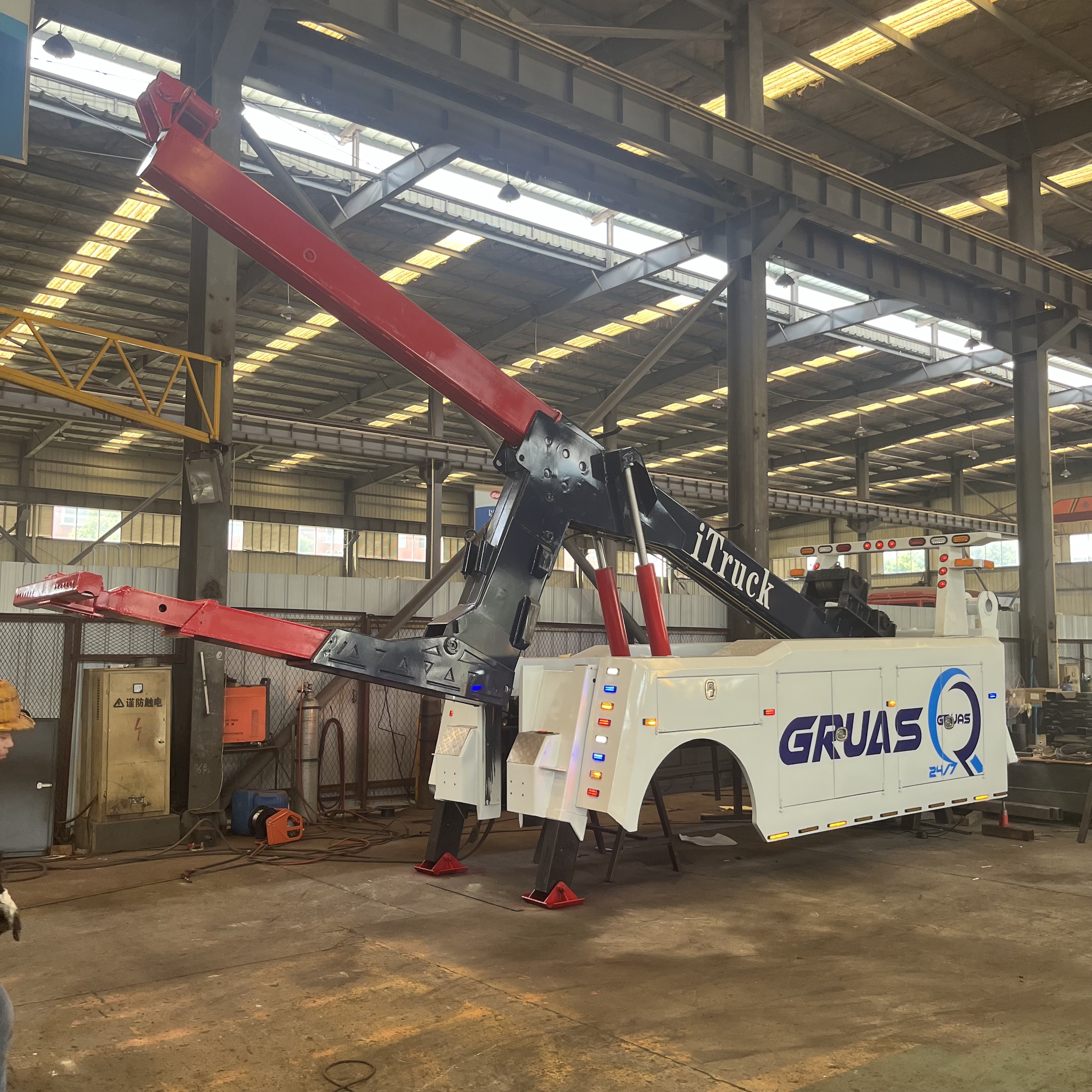

35600lb 16 Ton Medium Duty Wrecker Integrated Tow Truck With Front Outrigger

16 TONS 18 TONS MEDIUM DUTY INTEGRATED WRECKER WITH FRONT OUTRIGGER AND SIDE PULLER

Product Description

The medium duty integrated series have different capacities from 8 tons to 18 tons.

ENGINEERED FOR STRENGTH AND DURABILITY

The 16 ton Integrated Medium Duty wrecker with a 35,600 lb. rated underlift and a modern, steel body that is maximized for available storage and deck space.

Main Features

1. 10 Tons / 22,200 lbs. Planetary Winch, 2 Pcs. Total 20 Tons / 44,500 lbs.

2. 12 Tons / 26,700 lbs. Underlift Capacity, Tow Rate At Least 24 Tons / 53,300 lbs.

3. Spacious Tool Compartments

4. Multi-Positional Rear Jacks

5. Optional Remote Control

6. Available Low Profile Tow Bar

Specs

16 Tons Wrecker Body Specs
No.	Item	Content	Details	Unit
1	Name	16 Tons Wrecker Body
2	Winches	2×10 Tons Main Winches		Side puller (10 tons) is optional, extra USD2,500
3	Underlift	Underlift	G70 material, 3 stage
4	Boom	Boom	G70 material, 2 stage, hexagon
5	Legs	Rear	Hydraulic rear supporting legs	Front support legs are optional. Extra USD3,000
6	Frame	LED Lights Frame, full size
7	Toolbox	On Both Sides	Carbon steel Q345R, with stainless steel handles	Aluminum tool box optional, extra USD4,000
8	Hook-Ups	Air and Electrical Hook-Ups	12V or 24V
9	Control	Remote Wireless Control	Standard button remote control.	Optional Joystick type remote control, English Display Extra USD2,000
		Hand Manual Control	On Lift and Right Sides, English Indication
10	Hydraulic Parts	Hydraulic Pump
		Hydraulic Hose
		Hydraulic Connector
		Valves	Italy Hydrocontrol
		Cylinders
11	Attachments	5 Sets of Forks	4 sets for axle, 1 set for suspension
		U shape tyres holder	1 set
		Safety Chains	2 pcs
12	Painting and Indication	Electrophoresis Painting	Toolbox EP painting	Subframe with boom and underlift EP painting extra USD1,500
		Surface Painting	Epoxy Resin
		Indication	English Indication and Marks
Specifications
1	Underlift	Retracted Lifting Capacity	12000	kg
		Retracted Length	1505	mm
		Extended Lifting Capacity	4200	kg
		Extended Length	2760	mm
		Undelift Tilt	-10	°
		Towing Capacity	24-36	ton
2	Boom	Retracted Lifting Capacity (45°)	18	ton
		Extended Lifting Capacity (45°)	6.3	ton
3	Main Winches	Quantity	2	pcs
		Pulling Power	10	ton
		Type	Planetary
		Steel Wire Length	45	m
		Steel Wire Diameter	18	mm
