Euro 6 Dongfeng Mini Tilt Deck Tow Truck 3 Ton Tow Truck Both Sides Manual Operation

Ask Lasest Price
Brand Name :	Donfeng
Supply Ability :	30 sets per month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

Euro 6 Dongfeng Mini Tilt Deck Tow Truck 3 Ton Tow Truck Both Sides Manual Operation

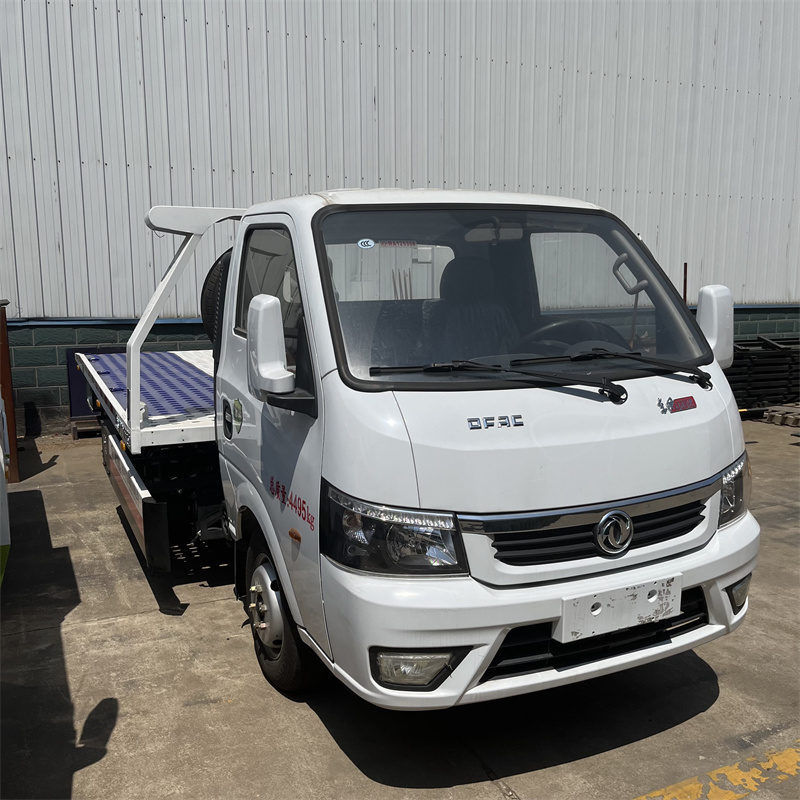

3 TONS EURO 6 DONGFENG MINI TILT TRUCK DECK RECOVERY TRUCK

Product Description

The 4 tons flatbed wrecker truck is available in steel, with multiple deck length and width configurations and different structural deck capacity for more strength and durability on the job.

The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4.

Other special requirements you want.

Main Features

1. Bed Length 5.2 m. Capacity 4 Tons.

2. Optional Hitch Ball. Optional Remote Control.

3. Optional Material from Q235B, Q345, G70, NM500, Hardox 450 etc.

Truck Specs

3 Tons Dongfeng Deck/Tilt Truck
Overview
Name	3 Tons Dongfeng Deck/Tilt Truck
Dimension (LxWxH)	5998x2250×2380 (mm)
Total Mass	4495 Kg
Passenger	2
The Parameters of Chassis
Manufacture/Model	Dongfeng
Driving Type	4*2 left hand drive
Wheel Base	2800 mm
Gearbox	Five speed forward and one reverse, manual
Tyre	6.00R15 10PR
The Number of Tyre	6+1(spare tyre)
AC, Power Steer, ABS, Air Brake, Tilt Cab, Central Locking, Electric Windows, Multi Functions Digital Dashboard, etc.	Equipped
The Parameters of Engine
Manufacturer/Model	QuanChai/Q23-95E60
Rated Power	95hp/70kw
Fuel Type	Diesel oil
Displacement/Capacity	2300ml
Emission Standard	Euro 6
Cylinder	In-line/4/turbo charge/intercooling
Max. torque	240N.m

Body Specs

4 Tons Slide Type Tilt Tray
General Settings	Color	Customizable, electrophoresis painting is optional and extra USD400
	Winch Capacity	4 tons
	Lift Capacity	4 tons
	Extension Capacity	4 tons
	Underlift Capacity	4 tons
	Platform Material	Q235B, 4mm thick
	Platform Type	Checkered
	Platform Dimension	5600 x 2300 mm (customizable)
	Wireless Remote Control	Optional
	Subframe with Underlift	Match to chassis
Lights	Siren Long Lamp with Speaker	1 pcs
	Sides Lights	8 pcs
	Frame Lights with Lights Seat	6 pcs
Hydraulic System	Bed Extension Cylinder with Seat	1 pcs
	Bed Lift Cylinder with Seat	2 pcs
	Underlift lift Cylinder	2 pcs
	Underlift Extension Cylinder	1 pcs
	Hydraulic Winch	1 pcs
	Hydraulic Pump	1 pcs
	Hydraulic Multi Way Valve	1 pcs
	Hydraulic Balance Valve	2 pcs (1 for lift and 1 for underlift)
	Hydraulic Hose	1 set
	Hydraulic Hose Containment	1 set
	Hose Sleeve	1 pcs
	Manual Control with Stainless Steel Seat	2 sets (on both sides)
	Oil Tank	1 pcs
Accessories	Auxiliary Wheels	2 pcs
	Straps	4 pcs
	Toolbox	2 pcs
	Wheel Grids	2 pcs
	L arms	2 pcs
	Fence	2 pcs
	Mudflap	2 pcs
	Lamp Frame	1 pcs
	Tow Chain	1 pcs
	Frame and Lights Bolts	1 set
	Toolbox and Fence Brackets Square Tube	1 set
