    FOTON High Pressure Cleaning Truck Mechanical Type 7 Tons Operating Weight

    Ask Lasest Price
    Brand Name : Dongfeng
    Certification : ccc
    Price : 36500
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 units per month
    Delivery Time : 30-35 working days
    • Product Details
    • Company Profile

    FOTON High Pressure Cleaning Truck Mechanical Type 7 Tons Operating Weight

    Foton High Pressure Cleaning Truck for Effective Cleaning of Hidden Corners of Vehicles

    1. Working principle of road washing truck
    Equipped with a front spray rack, By compressing water molecules into small water droplets under high pressure, fast and efficient cleaning and cleaning effects can be achieved. This type of vehicle is usually used to remove dirt, grease, mud, and other stains from the surface of road.
    2. Applicable environment for road washing truck
    In some industrial settings, such as factories, warehouses, etc., high-pressure cleaning vehicles can be used to remove harmful substances from the air to improve the air quality of the working environment. In addition to road cleaning, they are also widely used in building cleaning and other cleaning fields. In terms of vehicle cleaning, high-pressure cleaning vehicles can penetrate into the hidden corners of the vehicle, thoroughly remove various dirt and stubborn oil stains, and also have the effect of sterilization and disinfection, effectively ensuring the safety and hygiene of vehicle use


    Main Technical specification

    Dongfeng high pressure cleaning truck
    Overall dimensions8980×2500×3080 mm
    Tank dimention5400x2280x1380 mm
    Tank volume10 m3
    GVW18000 kg
    Curb weight7960 kg
    Payload10000 kg
    Wheel base4500 mm
    F/R track base1880/1800 mm
    F/R suspension1430/2160 mm
    Approach/departure angle23/12 °
    Max speed80 km/h
    Axle Load5500/10000 kg
    Tire295/80R22.5
    Number of axles2
    SteeringPower
    Transmission8JS118TA-B
    Cab passenger3
    Electric System24V
    Engine model
    ManufacturerCummins
    TypeISD245 50
    Emission/kw6700ml/180Kw, 245Hp
    Rated power speed2500RPM
    Maximum torque950Nm at 1200-1800rpm
    typeDiesel, 6 direct-line, turbocharge and water cooling
    Cylinder bore107mm
    Stroke124 mm
    Secondary engine modelJX493G3, 2771cc/57kw/3600r/min
    High pressure clean
    Cleaning spray rack width2.3-3.5 m
    Spray rack deflection angle30 °
    Sweeping speed5-15 Km/h
    Rated of pressure washing water10 Mpa
    Clean water rated flow≥ 150 L/min
    Spray flow≥ 125 L/min
    Low pressure clean
    Clean width≥ 16 m
    Clean water flow500-900 L/min
    Water gun range≥ 35 m
    Self-priming height≥ 6 m
    Driving performance
    Max speed80 Km/h
    Maximum grade30 °
    Braking length10 m
    Minimum turning diameter19 m
    Clutch
    TypeSACHS
    Plate's diameter¢430mm
    Operating systemHydraulic control with air booster, pulling
    PTO
    TypePTO with gear pump
    Maximum output torque850Nm
    Standard configuration

    1, Front high pressure road cleaning device(1 set)

    2, Front high pressure nozzle(2 sets)

    3, Front low pressure spray nozzle(2 set)

    4, Middle upper high pressure gun(1 set)

    5, Milddle bottom high pressure nozzle(2 set)

    6, Rear low pressure shower sprinkler(2 set)

    7, Rear high pressure annular sprinkler(2 set)

    8, Rear high pressure gun(1 set)

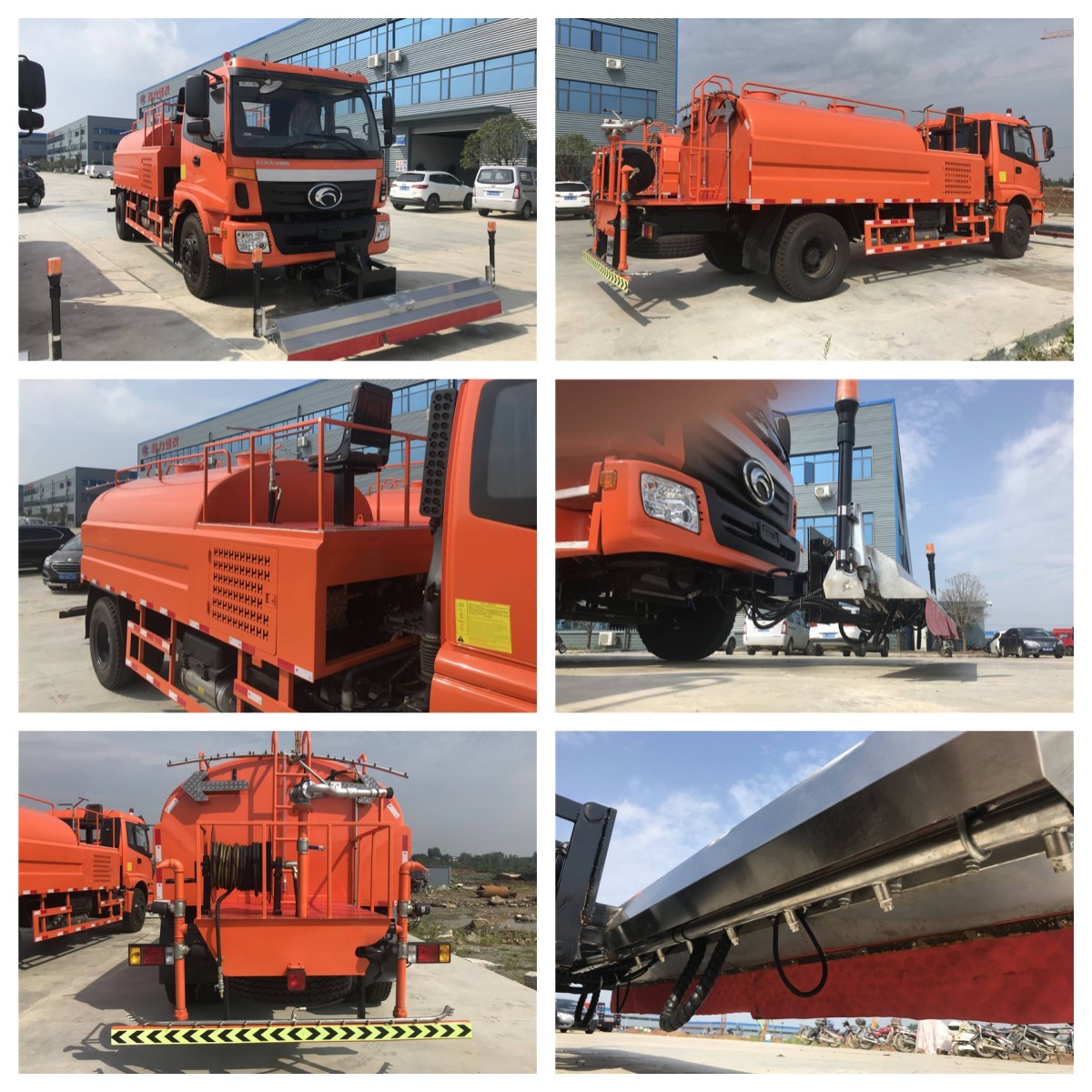

    High pressure road washing truck picture

    FOTON High Pressure Cleaning Truck Mechanical Type 7 Tons Operating Weight

    High pressure road washing truck function display

    FOTON High Pressure Cleaning Truck Mechanical Type 7 Tons Operating Weight

    High pressure road sweeper truck bulk order

    FOTON High Pressure Cleaning Truck Mechanical Type 7 Tons Operating Weight

    High pressure road sweeper truck loading

    FOTON High Pressure Cleaning Truck Mechanical Type 7 Tons Operating Weight
