10 cbm Wet and Dry High Pressure Road Sweeper Truck

Dry road sweeper: The dry road sweeper adopts a dry dust removal method, which means that the sweeper does not spray water during the dust removal process during cleaning operations. Therefore, a filter must be installed in the garbage bin or air duct of the dry road sweeper. During the cleaning operation of a dry road sweeper, the garbage with a high density that is sucked in from the suction port will naturally settle when entering the garbage bin due to the sharp decrease in wind speed in the bin. However, the small dust with a light density that is sucked in will be intercepted by the filter as it passes through the air flow. According to the different types of filters used by road sweepers, some dry road sweepers can use water spray to compress dust while others cannot use water spray to prevent filter blockage.

Wet sweeper: The wet sweeping vehicle adopts a wet dust removal method, which means that during the sweeping operation, in addition to using water spray to compress dust at the vertical sweeping point, the sweeping vehicle uses water spray to remove dust at the suction nozzle and suction pipe. The purpose of spraying dust
at the vertical sweeping point is to prevent dust from coming out during the sweeping operation of the road sweeper, and to spray water at the suction nozzle and suction pipe for dust removal. The purpose is to moisten and aggregate small dust sucked through the suction nozzle into larger volume particles in the water mist, so as to settle in the garbage bin. So, a wet and dry dual-purpose road sweeper is a combination of the two, which can achieve waterless cleaning or sprinkle water to reduce dust in areas with high dust content before cleaning, achieving the function of wet road sweeping and reducing dust. It is widely used in road cleaning operations in urban streets, highways, airports, docks, and other places

Special performance

The dry and wet road sweeper equip the function of washing and sweeping car and vacuuming car in one, specializing in washing and planing roads, sand and gravel plants, coal plants, mixing stations, ports, Pier and other heavily polluted road conditions, can change the air duct at any time to change the dust reduction mode, can not need to use water dust reduction, no limited by the distance from the water source, it is an all-terrain, all-weather road sweeper, especially suitable for cold and dusty areas. Dry and wet dual use, four seasons all day Hou coverage!

Cleaning: auxiliary engine drive hydraulic oil pump and fan work. Hydraulic oil pump drive left and right sweep plate expansion, lifting Spin. The left and right sweep tray sweeps the garbage on both sides under the road sweeper and in front of the suction nozzle. The fan works to make the dustbin and suck The duct composed of the tube and the nozzle produces a high-speed air flow. Under the action of the air flow, the garbage is sucked into the nozzle and enters the garbage
In the box; The chassis engine drives the suction car to move forward, and the garbage swept in front of the suction nozzle continues to enter the suction nozzle. And a steady stream of suction into the trash, to achieve road cleaning.
Dust removal: The garbage box is designed in layers, and the clean air is discharged after the dust is filtered through the filter cylinder, and the granular garbage is straight Connect into the garbage box; When the road is wet or rainy, by switching the air duct, all the garbage is directly settled by gravity type into the garbage bin. The garbage and dust in the body of the suction carriage are separated by inertia, impact separation and filtration three-stage dust removal, the first dry dust removal mechanism is adopted to realize the automatic dust removal of the filter system

Main Technical specification

Truck tools

Truck spare parts

Major import configurations

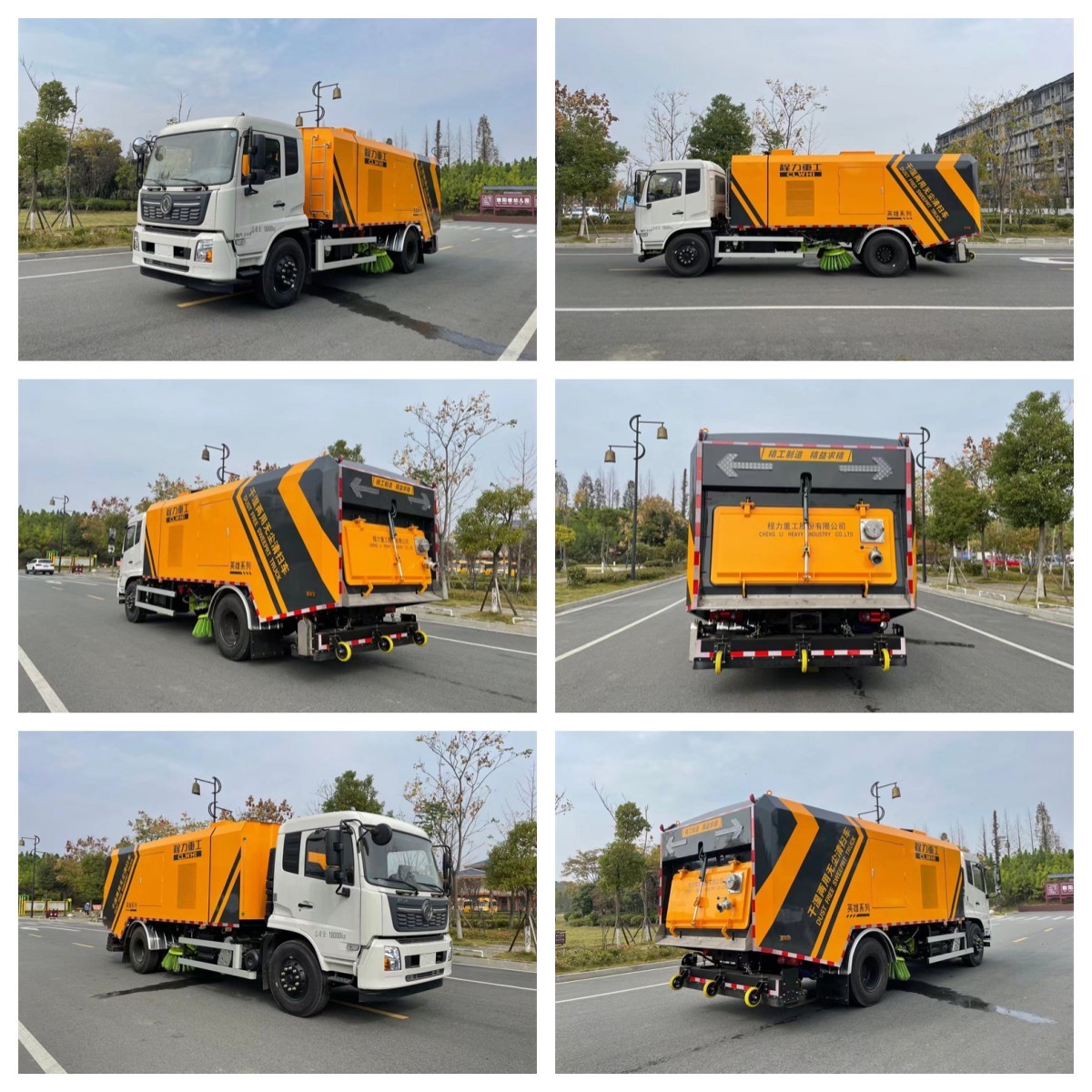

Wet and Dry High Pressure Road Sweeper Truck Picture

Wet and Dry High Pressure Road Sweeper Truck Function Display

Wet and Dry High Pressure Road Sweeper Truck Bulk Order

High pressure road sweeper truck loading
