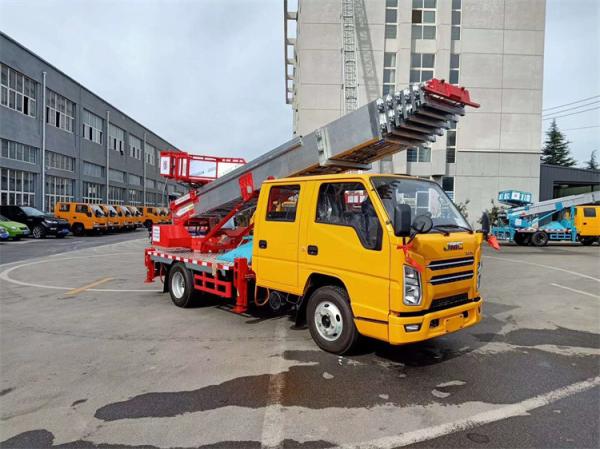

JMC 28 Meters High building moving ladder truck
High building moving ladder truck.
1. The ladder arm adopts the original Korean Delin ladder arm, and the key components are imported from the original Korean package.
2. Hydraulic telescopic outriggers, the whole vehicle is equipped with four hydraulic horizontal telescopic outriggers, up and down telescopic outriggers, and a total of eight hydraulic cylinders. The H-type hydraulic outrigger has a large span of two horizontal outriggers, which ensures the stability of the ladder arm and can be operated simultaneously or separately.
3. Wireless remote control operation, which can be operated within 80 meters, is convenient to observe the working space, safe and reliable. The remote control and manual operation modes greatly improve the work efficiency. For workers, there is no need to worry about working in the sun. It is more convenient to work.
4. The photoelectric switch with high sensitivity is used with wireless remote control to ensure the accuracy of the elevator arm. The travel of the elevator arm can be flexibly adjusted according to the actual situation of the operation to ensure the stability of the operation.
5. The drag chain is added to the horizontal telescopic tubing to ensure the smooth expansion and service life of the tubing.
6. The original design of the dump hopper has been improved to ensure the portability and flexibility of the product, while maintaining the original cargo weight and increasing the service life of the elevator arm. The size of the dump hopper is 1160x900x370mm, which is mainly used for the up and down transportation of sand and stone materials. After the dump hopper is loaded under the bottom, it is automatically unloaded after it is sent to the set position by remote control, which is convenient, fast, time-saving and labor-saving.
7. Radiator, hydraulic radiator is mainly used to cool the oil in the hydraulic tank.
8. 220V on-board power supply (optional), 220V on-board power supply can be connected to electric operation tools at the work site for convenient operation
Main Technical specification
| The parameters of the truck |
| Item name | JMC 28 Meters high building ladder moving truck |
| Dimension | 5990x2210x2690 mm |
| Total weight | 4080 kg |
| Curb weight | 3755 kg |
| Wheelbase | 3360 mm |
| Chassis brand | JMC |
| Tire speficication | 7.00R16 |
| Number of tires | 6 |
| Fuel type | Diesel |
| Engine model | JX493ZLQ5 |
| Engine displacement | 2771 cc |
| Engine power | 85 kw/ 116 hp |
| Engine rate speed | 3200 rpm |
| Engine max torque / speed | 285 N.m at 1800-12200 rpm |
| The Parameters of Equipment |
| Max working height | 28 m |
| Height from the platform | ≥ 8.3m |
| Loading capacity | 200 kg |
| Support leg | 4 |
| Span | 1800 mm |
| Standard preparation | he whole vehicle with four hydraulic telescopic legs, radiator, self-discharging bucket, wireless remote control. Removable parts: front legs, air conditioning, emergency power supply, air pump, hydraulic self-unloading. |

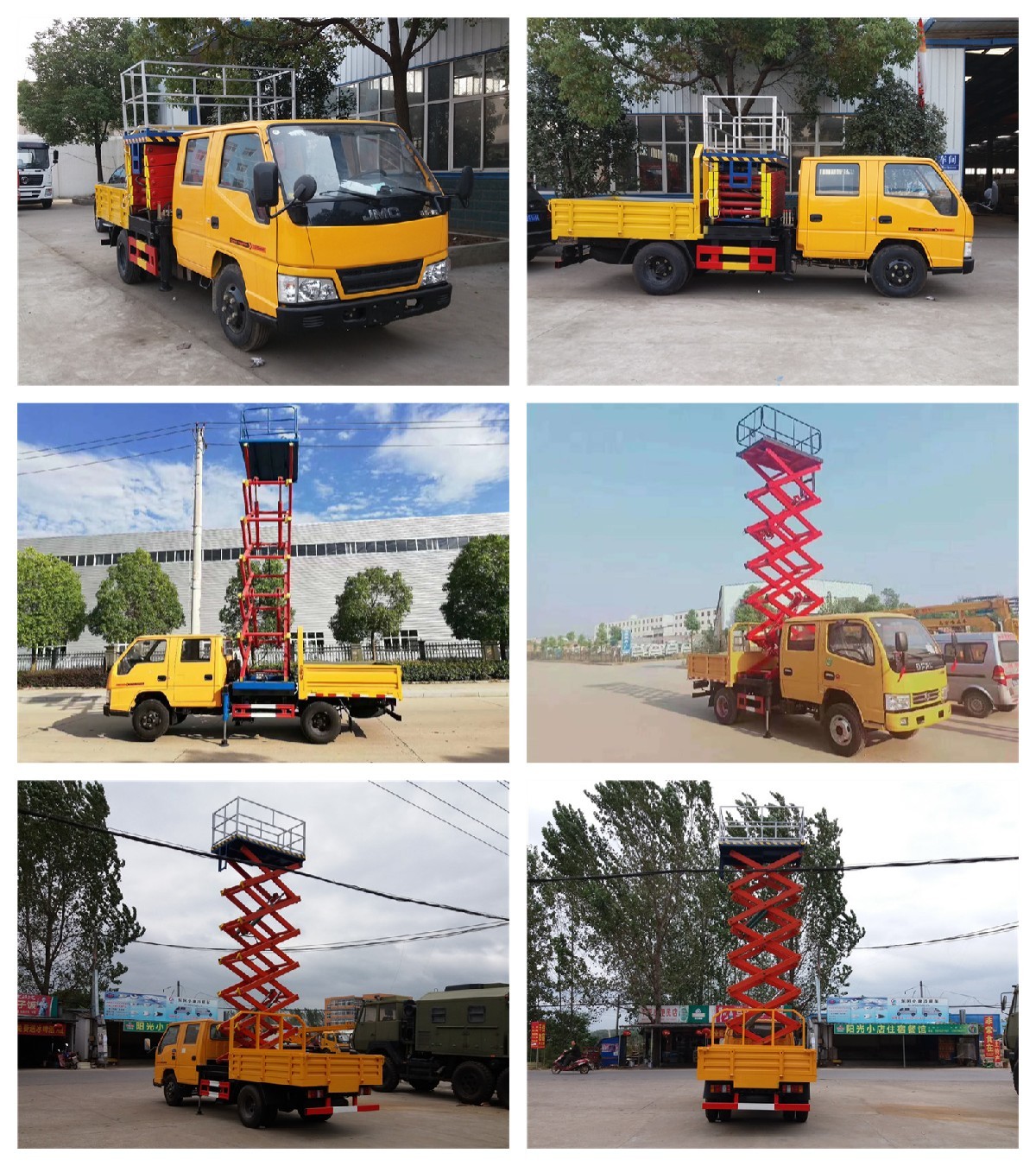

JMC 10 Meters Elevating Platform Aerial Truck Picture
